Aluminum 1500W Ultrasonic Welding Transducer For Branson 803 Converter

  • 1
  • 2
  • 3

Brand Name : Altrasonic

Model Number : HSD110-3122

Certification : CE

Place of Origin : CHINA

MOQ : 2 units

Price : negotiation

Payment Terms : T/T, Western Union

Supply Ability : 1000 units per month

Delivery Time : 7 working days after received your payment

Packaging Details : Packed in carton

Product Name : Ultrasonic converter

Frequency : 20Khz

Ceramic diameter : 50 mm

Capacitance : 11.5 - 12.5 nf

Power : 1500W

Application : Plastic welding Machine

Ceramic disc : 4 pcs or 6pcs

Material : Titanium, Aluminum materials optional

Protective outer cover : Aluminum and stainless steel optional

Delivery time : 7workdays

Contact Now

High Quality Ultrasonic Welding Transducer Replacement Branson 803 Converter

Specifications:
Model
HS-B803
Frequency
20 kHz
Output power
1500 watt
Joint bolt
1/2-20unf
Ceramic disc Diameter
50 mm
Quantity of Ceramic discs
4 pcs or 6pcs
Capacitance
11.5 - 12.5 nf
Amplitude
20 um
Application
welding machine
Description:
The Ultrasonic Converter replacement for Branson Plastic Welding Machine Direct replacement for the Branson machine that delivers lower cost, rugged quality and superior value.

Warranty:
We offer the same warranty as the OEM, namely, three years one-time replacement.
Simply ship the broken unit back to arrive within three years of original shipment, and it will be replaced (one time).
Advantages:
1. High output amplitudes
2. High mechanical quality factor
3. Mechanically very strong and stable
4. Poreless, high-density piezoceramics
5. Minimal thermal dissipation and power losses
6. Excellent electro-acoustic conversion efficiency
What we can do for you
1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.

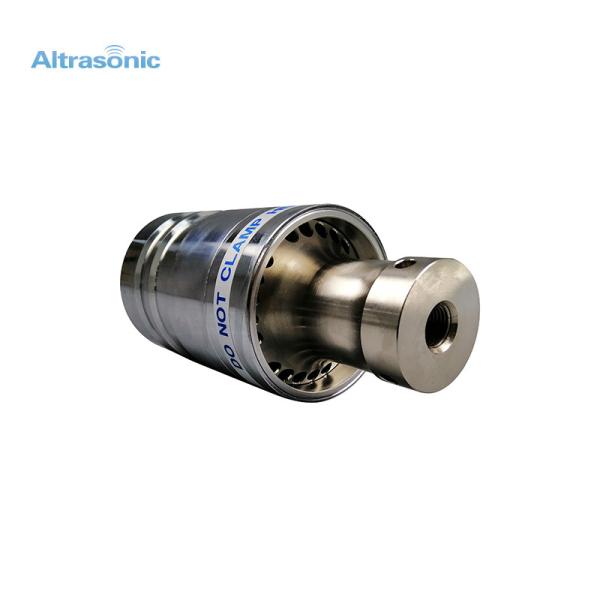

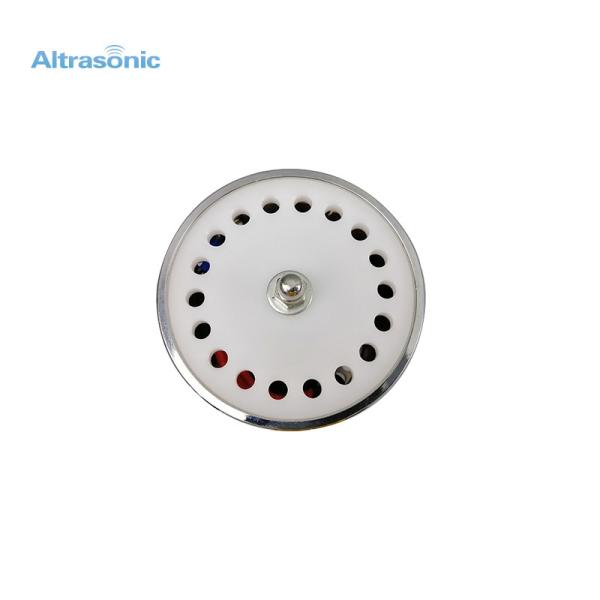

Product Display:
Aluminum 1500W Ultrasonic Welding Transducer For Branson 803 ConverterAluminum 1500W Ultrasonic Welding Transducer For Branson 803 Converter
